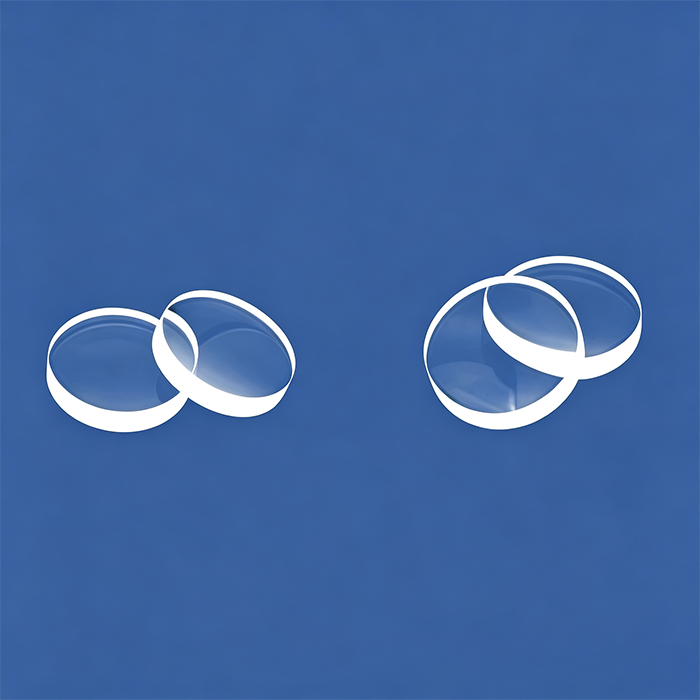

正胶合消色差透镜采用正、负两片不同色散率的光学玻璃胶合组成，使不同波长的光线能够在接近同一焦平面处会聚，相比普通球面单透镜，可显著降低由波长差异造成的焦点偏移和成像彩边。该系列产品具有较高的加工精度和稳定的光学性能，可满足科研、工业检测及精密光学系统对成像质量和光束控制的要求。
产品特点优良的消色差性能；正焦距设计；高精度光学加工；多规格可选
型号MP-SJZJH0510
应用领域机器视觉与工业成像 | 显微镜及显微成像系统 | 激光准直与聚焦 | 科研实验光路
产品单价联系客服询价
到货日期请咨询客服获得货期
产品库存请咨询客服
Daisy
电话：18602170419
邮箱：moli@microphotons.com
设计波长 有效孔径
632.8nm ＞90%
技术规格表

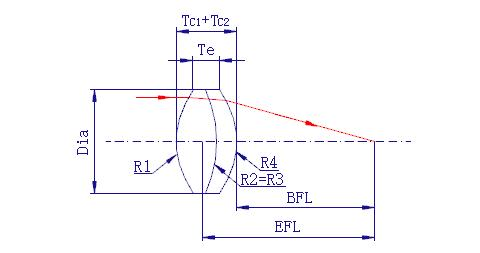

编 号No. |
有效焦距EFL(mm) | 外圆 直径 Dia (mm) | 曲率半径 | 后焦距 BFL (mm) | 中心厚度 | 材料 | |||||
R1 (mm) | R2=R3 (mm) | R4 (mm) | Tc1 (mm) | Tc2 (mm) | Lens 1 | Lens 2 | |||||
MP-SJZJH0510 | 10.089 | 5.00 | 5.702 | -4.000 | -16.459 | 8.238 | 2.40 | 0.95 | H-K9L | H-F4 | |
MP-SJZJH0610 | 10.010 | 6.00 | 6.546 | -4.055 | -23.230 | 7.555 | 3.60 | 0.80 | SK9 | SF15 | |
MP-SJZJH0614 | 14.954 | 6.00 | 8.831 | -6.546 | -19.770 | 13.065 | 2.71 | 1.00 | BK7 | SF5 | |
MP-SJZJH0615 | 15.607 | 6.00 | 9.290 | -6.516 | -21.040 | 13.701 | 2.00 | 2.10 | H-K9L | H-ZF1 | |
MP-SJZJH0620 | 20.003 | 6.00 | 12.359 | -8.511 | -24.380 | 18.273 | 2.60 | 1.00 | BK7 | SF5 | |
MP-SJZJH0624 | 24.962 | 6.00 | 15.704 | -10.666 | -29.990 | 23.433 | 2.30 | 1.00 | BK7 | SF5 | |
MP-SJZJH0627 | 27.328 | 6.00 | 13.810 | -11.508 | -59.448 | 25.052 | 2.00 | 2.10 | H-K9L | H-ZF1 | |
MP-SJZJH0629 | 29.976 | 6.00 | 18.880 | -12.942 | -36.480 | 28.666 | 1.90 | 1.00 | BK7 | SF5 | |
MP-SJZJH0824 | 24.933 | 8.00 | 15.596 | -10.881 | -30.480 | 23.061 | 2.90 | 1.00 | BK7 | SF5 | |
MP-SJZJH0829 | 29.997 | 8.00 | 18.880 | -12.882 | -36.220 | 28.251 | 2.70 | 1.00 | BK7 | SF5 | |
MP-SJZJH0927 | 27.390 | 9.00 | 44.640 | -7.554 | -15.240 | 26.986 | 3.00 | 2.60 | H-K9L | H-ZF1 | |
MP-SJZJH1020 | 20.047 | 10.00 | 12.320 | -9.020 | -25.230 | 17.625 | 3.80 | 1.00 | BK7 | SF5 | |
MP-SJZJH1225 | 25.028 | 12.00 | 15.346 | -11.350 | -31.920 | 22.284 | 4.20 | 1.30 | BK7 | SF5 | |
MP-SJZJH1225A | 25.001 | 12.70 | 15.596 | -11.402 | -31.050 | 22.252 | 4.30 | 1.30 | BK7 | SF5 | |
MP-SJZJH1229 | 29.952 | 12.70 | 18.535 | -13.490 | -37.840 | 27.352 | 4.00 | 1.30 | BK7 | SF5 | |
MP-SJZJH1239 | 39.957 | 12.70 | 25.230 | -17.539 | -48.750 | 37.751 | 3.40 | 1.30 | BK7 | SF5 | |
MP-SJZJH1250 | 50.519 | 12.70 | 31.260 | -21.293 | -62.370 | 48.441 | 3.10 | 1.30 | BK7 | SF5 | |
MP-SJZJH1259 | 59.979 | 12.70 | 37.330 | -26.420 | -75.860 | 58.069 | 2.80 | 1.30 | BK7 | SF5 | |
MP-SJZJH1274 | 74.942 | 12.70 | 46.770 | -32.960 | -94.620 | 73.149 | 2.60 | 1.30 | BK7 | SF5 | |
MP-SJZJH1340 | 40.464 | 13.00 | 25.410 | -18.072 | -50.470 | 38.458 | 3.00 | 1.30 | BK7 | SF5 | |
MP-SJZJH1443 | 43.978 | 14.00 | 27.540 | -19.543 | -54.950 | 41.804 | 3.30 | 1.30 | BK7 | SF5 | |
MP-SJZJH1640 | 40.584 | 16.00 | 26.900 | -13.000 | -85.110 | 36.575 | 6.00 | 1.50 | H-ZK3 | H-ZF1 | |
MP-SJZJH1652 | 52.291 | 16.00 | 35.995 | -18.030 | -43.950 | 50.16 | 4.00 | 1.50 | H-K51 | H-ZF5 | |
MP-SJZJH1773 | 73.066 | 17.00 | 47.208 | -31.008 | -256.110 | 70.178 | 3.50 | 1.70 | SK9 | SF5 | |
MP-SJZJH1840 | 40.023 | 18.00 | 24.270 | -18.356 | -53.090 | 36.509 | 5.40 | 1.50 | BK7 | SF5 | |
MP-SJZJH1849 | 49.965 | 18.00 | 31.690 | -22.000 | -60.570 | 46.959 | 4.80 | 1.50 | BK7 | SF5 | |
MP-SJZJH1858 | 58.423 | 18.00 | 42.450 | -26.290 | -231.450 | 55.244 | 4.00 | 2.00 | H-LAK5 | H-ZF4 | |
MP-SJZJH1859 | 59.896 | 18.00 | 37.840 | -26.490 | -73.790 | 57.257 | 4.10 | 1.50 | BK7 | SF5 | |
MP-SJZJH1880 | 80.199 | 18.00 | 49.550 | -36.810 | -165.580 | 77.595 | 3.40 | 1.50 | BAK1 | SF8 | |
MP-SJZJH18198 | 198.849 | 18.00 | 120.380 | -31.955 | -120.380 | 197.279 | 3.00 | 2.00 | H-K9L | H-ZF2 | |
MP-SJZJH1890 | 90.074 | 18.90 | 45.920 | -41.647 | -185.839 | 86.845 | 3.65 | 1.93 | H-K9L | H-ZF2 | |
MP-SJZJH2534 | 34.050 | 25.00 | 20.785 | -20.854 | ∞ | 26.226 | 10.00 | 2.00 | H-LAK12 | H-ZF7L | |
MP-SJZJH25100 | 100.056 | 25.40 | 62.741 | -45.770 | -128.192 | 97.148 | 4.00 | 2.50 | H-K9L | H-ZF2 | |
MP-SJZJH25101 | 101.232 | 25.40 | 57.759 | -25.850 | -237.014 | 95.996 | 6.50 | 1.80 | N-BAF10 | N-SF6HT | |
MP-SJZJH41120 | 120.259 | 41.40 | 76.240 | -59.550 | -168.540 | 114.405 | 9.00 | 3.00 | H-K9L | H-ZF1 | |
MP-SJZJH41149 | 149.953 | 41.50 | 85.930 | -46.620 | -185.000 | 143.556 | 9.50 | 2.50 | H-K9L | H-ZF1 | |
MP-SJZJH41150 | 150.058 | 41.90 | 85.850 | -46.620 | -185.000 | 141.561 | 13.00 | 2.50 | H-K9L | H-ZF1 | |
MP-SJZJH50107 | 107.759 | 50.80 | 182.272 | -35.668 | -83.789 | 103.715 | 17.00 | 3.50 | N-BAF10 | N-SF6HT | |
MP-SJZJH57250 | 250.125 | 57.00 | 153.260 | -110.920 | -326.240 | 241.702 | 13.00 | 4.00 | H-K9L | H-ZF2 | |
编 号No. | 有效焦距 EFL(mm) | 外圆直径 Dia(mm) | 通光孔径CA(mm） | 冕牌玻璃 Crown Glass | 火石玻璃 Flint Glass | 样式Type |
MP-SJZJH82500KD | 500.00 | 82.00 | 80.00 | H-K9L | ZF2 | Cemented 胶合 |
MP-SJZJH821000KD | 1000.00 | 82.00 | 80.00 | H-K9L | F2 | Cemented 胶合 |
MP-SJZJH83500KD | 500.00 | 83.00 | 80.00 | H-K9L | F2 | Air-Spaced 双分离 |
MP-SJZJH104600KD | 600.00 | 104.00 | 100.00 | H-K9L | ZF2 | Air-Spaced 双分离 |
MP-SJZJH1041000KD | 1000.00 | 104.00 | 100.00 | H-K9L | F4 | Air-Spaced 双分离 |
MP-SJZJH1041200KD | 1200.00 | 104.00 | 100.00 | H-K9L | F2 | Air-Spaced 双分离 |
MP-SJZJH131700KD | 700.00 | 131.00 | 126.00 | H-K9L | F4 | Air-Spaced 双分离 |
MP-SJZJH1311000KD | 1000.00 | 131.00 | 126.00 | H-K9L | F2 | Air-Spaced 双分离 |
MP-SJZJH154750KD | 750.00 | 154.00 | 150.00 | H-K9L | F4 | Air-Spaced 双分离 |
MP-SJZJH1541200KD | 1200.00 | 154.00 | 150.00 | H-K9L | F2 | Air-Spaced 双分离 |
MP-SJZJH1541500KD | 1500.00 | 154.00 | 150.00 | H-K9L | F2 | Air-Spaced 双分离 |
MP-SJZJH1541800KD | 1800.00 | 154.00 | 150.00 | H-K9L | ZF2 | Air-Spaced 双分离 |
MP-SJZJH1542250KD | 2250.00 | 154.00 | 150.00 | H-K9L | F4 | Air-Spaced 双分离 |
MP-SJZJH2101200KD | 1200.00 | 210.00 | 204.00 | H-K9L | ZF1 | Air-Spaced 双分离 |
MP-SJZJH2101800KD | 1800.00 | 210.00 | 204.00 | H-K9L | F3 | Air-Spaced 双分离 |
MP-SJZJH2102400KD | 2400.00 | 210.00 | 204.00 | H-K9L | F2 | Air-Spaced 双分离 |
MP-SJZJH2103000KD | 3000.00 | 210.00 | 204.00 | H-K9L | F2 | Air-Spaced 双分离 |
MP-SJZJH2222700KD | 2700.00 | 222.00 | 216.00 | H-K9L | F2 | Air-Spaced 双分离 |
MP-SJZJH2263300KD | 3300.00 | 226.00 | 220.00 | H-K9L | F2 | Air-Spaced 双分离 |
MP-SJZJH2341800KD | 1800.00 | 234.00 | 228.00 | H-K9L | F3 | Air-Spaced 双分离 |
MP-SJZJH2541375KD | 1375.00 | 254.00 | 250.00 | H-K9L | ZF1 | Air-Spaced 双分离 |
MP-SJZJH2541800KD | 1800.00 | 254.00 | 250.00 | H-K9L | F2 | Air-Spaced 双分离 |
MP-SJZJH3103000KD | 3000.00 | 310.00 | 300.00 | H-K9L | F2 | Air-Spaced 双分离 |
